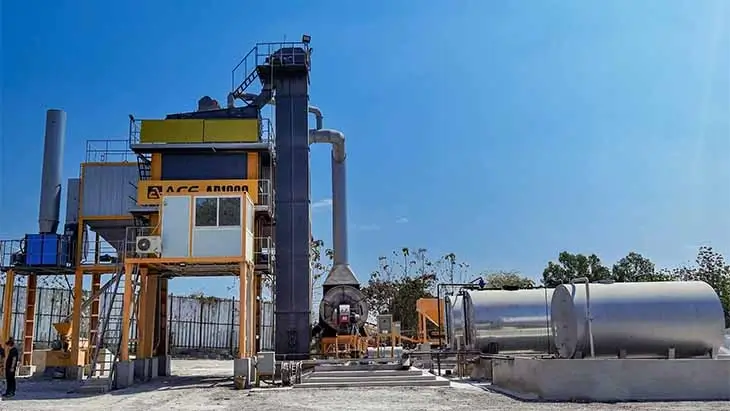

BAP Asphalt Batch Mix Plant
BAP Series asphalt batching plant is stationary type batch mix asphalt plant designed to produce high-quality hot mix asphalt (HMA), stone macadam asphalt (SMA) and other genres of asphalt concrete. BAP Series is the classic and best-selling asphalt plant, featured by higher efficiency and productivity, fitting for construction and rehabilitation of roads in all grades and scales, especially for large-scale and high-grade road construction projects.
- Model: BAP60 ~ BAP400
- Production Capacity: 60t/h ~ 400t/h
- Highlights: Stationary, batch mix, precisely weighing aggregate and batching; widely applied, easily operated
ISO、CE、EAC- 12-month Warranty
- L/C Accepted
- 7*24H Response
Brief Introduction
The BAP asphalt batch mix plant is an ideal plant for asphalt mixture producer and road construction project contractor. Precise aggregate batching and accurate weighing ensure the quality of finished asphalt mix. BAP Series asphalt batching plant produces quality and versatile asphalt mix (HMA, SMA, AC) for road and airport runway pavement.
Technical Parameters
Production capacity of BAP Series asphalt batch mixing plant ranges from 60t/h to 400t/h. Clients can choose the right model according to their production or projects requirements. ACE Group accept customized design and production based on the following model and parameters.
| Model | Production Capacity | Mixer Capacity | Dust Emission | Total Power | Fuel Consumption | Measurement Accuracy | |
|---|---|---|---|---|---|---|---|
| Diesel | Coal | ||||||
| BAP60 | 60t/h | 750kg | ≤20 mg/μm³ | 178kW | 5.5-7 kg/t | 10kg/t | Aggregate: ±0.5%; Filler: ±0.25%; Bitumen: ±0.25% |
| BAP80 | 80t/h | 1000kg | ≤20 mg/μm³ | 285kW | 5.5-7 kg/t | 10kg/t | |
| BAP100 | 100t/h | 1200kg | ≤20 mg/μm³ | 316kW | 5.5-7 kg/t | 10kg/t | |
| BAP120 | 120t/h | 1500kg | ≤20 mg/μm³ | 380kW | 5.5-7 kg/t | 10kg/t | |
| BAP160 | 160t/h | 2000kg | ≤20 mg/μm³ | 470kW | 5.5-7 kg/t | 10kg/t | |
| BAP200 | 200t/h | 2500kg | ≤20 mg/μm³ | 547kW | 5.5-7 kg/t | 10kg/t | |
| BAP240 | 240t/h | 3000kg | ≤20 mg/μm³ | 700kW | 5.5-7 kg/t | 10kg/t | |
| BAP320 | 320t/h | 4000kg | ≤20 mg/μm³ | 870kW | 5.5-7 kg/t | 10kg/t | |
| BAP400 | 400t/h | 5000kg | ≤20 mg/μm³ | 960kW | 5.5-7 kg/t | 10kg/t | |
BAP Asphalt Batch Mix Plant Components
1. Containerized Structure
Modular Structure,suitable for contrainer load, lower shipment costs;Convenient for erection and installation; fit for international clients.
2. Precise Batching
Precise weighing and aggregate batching, batch mix, hot mix; Producing good quality finished asphalt mixture; Wide application for pavement for all degrees of roads.
3. More Versatile
Optional feed for additives such as dye pigment, fiber and foam, etc.; Produce colorful and foam asphalt mix, SMA, HMA, AC and the like; Easy recipe change, product asphalt mixture for all kind of pavement.
4. Drying Drum
Lightweight design, made of high strength steel; Optimized inner structure, efficient and saving fuel; Drive motors use central lubrication, easy for maintenance.
5. Efficient Mixer
Twin-shaft paddle mixer, fast and homogeneous mix performance; Mixer arms, paddles and liners made by wear-resistant alloy, sturdy and durable; Drive motors adopts central lubrication, easy for maintenance.
6. Intelligent Control
Highly automation with PLC control, quite easy for operation; Manual, semi-auto and auto control mode available; Remote technical support available.
7. Dust Filters
Primary cyclone dust filter, coarse dust are reclaimed; Secondary bag house dust filter, fine dust are collected and reclaimed; Dust emission is less than 20mg/μm3, minimal dust emission.
8. Customized Design
RAP (reclaimed asphalt pavement) processing unit can be added if required; Asphalt plant auxiliary equipment and machine available for client’s option; Upgrade and retrofit service available upon requirement.
