IAM Super Mobile Asphalt Mixing Plant
Our independently developed IAM series super mobile asphalt mixing plant has excellent mobility, dust filter performance and can produce various types of high-quality asphalt mixtures. It is cost-effective, beneficial to the environment and the society. It is widely applicable and owns a long service life.
- Model: IAM80 ~ IAM120
- Production Capacity: 60t/h ~ 140t/h
- Highlights: Counterflow drying drum, double-shaft continuous mixer, house bag dust filter, quick assembly and less labor cost
ISO、CE、EAC- 12-month Warranty
- L/C Accepted
- 7*24H Response
Brief Introduction
The IAM series super mobile asphalt mixing plant is integrated into one or two mobile units, which facilitates quick relocation and reassembly can be completed within hours. Only a small amount of foundation construction is required. It is the ideal choice for medium and high-end long-distance road construction projects and is currently popular in markets such as South America, the Middle East and Southeast Asia.
Technical Parameters
| Product Model | IAM80 | IAM120 |
|---|---|---|
| Production capacity | 60-100t/h | 100-140t/h |
| Total Power | 127kW | 179.2kW |
| Total Weight | 55t | 56t |
| Cold Feeder | ||
| Cold Feeder Capacity | 4×9m³ as standard | 4×9m³ as standard |
| Weighing System | Optional | Optional |
| Hopper Wall Vibrator | 2 | 2 |
| Aggregate Belt Width | 500mm | 500mm |
| Conveyor Belt Width | 650mm | 650mm |
| Drying Drum | ||
| Dimensions | Ø1500X7175mm | Ø1800X8360mm |
| Burner | ||
| Model | EFC1000 | EFC1500 |
| Mixer | ||
| Mixing Capacity | 100t/h | 140t/h |
| House Bag Dust Filter | ||
| Number of House Bags | 420 pcs | 588 pcs |
| Filtration Area | 325m³ | 456m³ |
| Filtration Efficiency | 99％ | 99％ |
| Particle Emissions | 50mg/μm³ | 50mg/μm³ |
| Cleaning Mode | Pulse Jets | Pulse Jets |
| Scraper Conveyor | ||
| HMA Storage Silo | 1.55m³ | 1.57m³ |
| Mobile Chassis | ||
| Suspension/Brakes | Air Brakes | Air Brakes |
| Axles/Tires | 2/8+3/12 pcs | 2/8+3/12 pcs |
| Cold Feeder Specifications | ||
| Length | 14,505mm | 14,505mm |
| Width | 2,750mm | 2,750mm |
| Height | 3,415mm | 3,415mm |
| Drying Drum Specifications | ||
| Length | 20,740mm | 22,200mm |
| Width | 3,267mm | 3,437mm |
| Height | 4,395mm | 4,400mm |

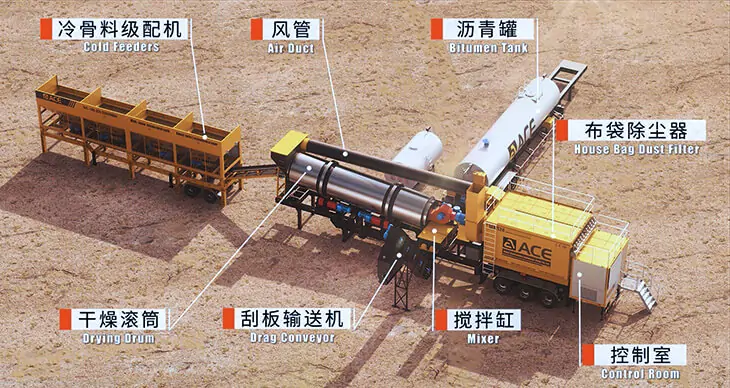

Structure Diagram
Super-mobile Asphalt Mixing Plant Components
1. Cold Feeder
Efficient supply of cold aggregates with precise dosage.
2. Drying Drum
Counterflow drying drum with optimized drying performance.
3. Mobile Chassis
Rapid reassembly and greater mobility, utility and agility.

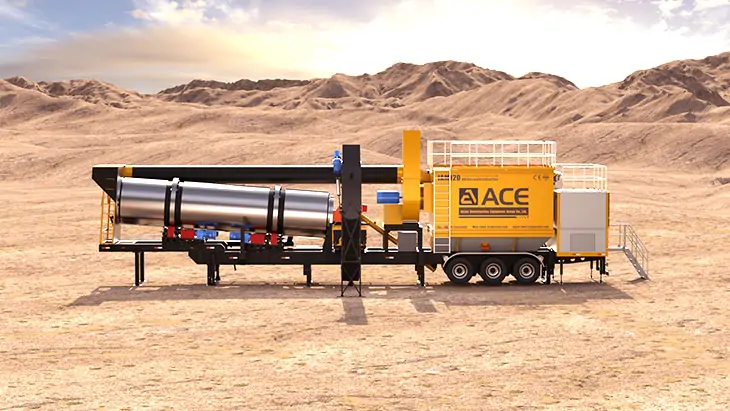

4. House Bag Dust Filter
High efficiency flue gas filtration system with a house bag dust filter.
5. Mixer
The aggregates, bitumen and additives are thoroughly agitated in the large-capacity mixer to ensure homogeneity and high quality.
6. Scraper Conveyor
The drag conveyor performs secondary mixing of finished materials and prevents segregation of the mixture.
7. Control Room
The entire plant can be controlled by a fully computerized control system to ensure high quality production.
8. Bitumen Tank
All bitumen tanks are equipped with automatic thermostatic controls and level indicators.
